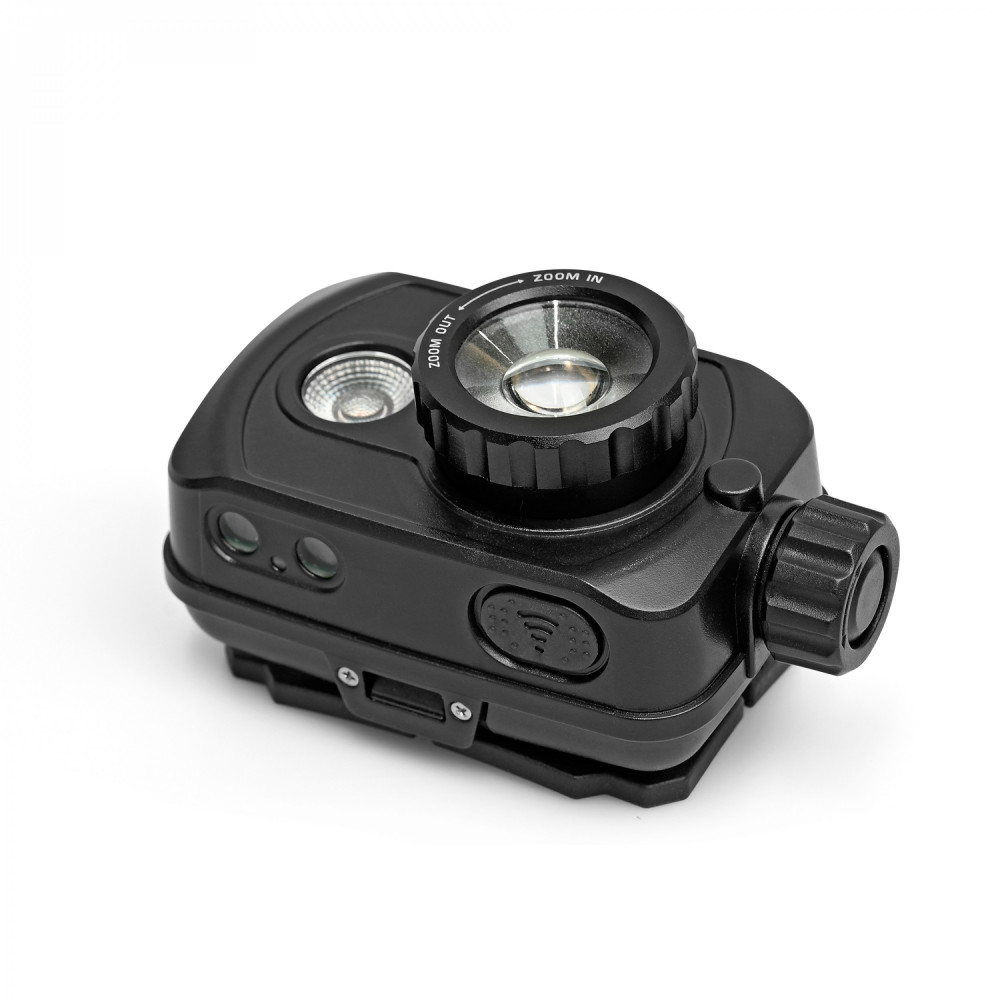

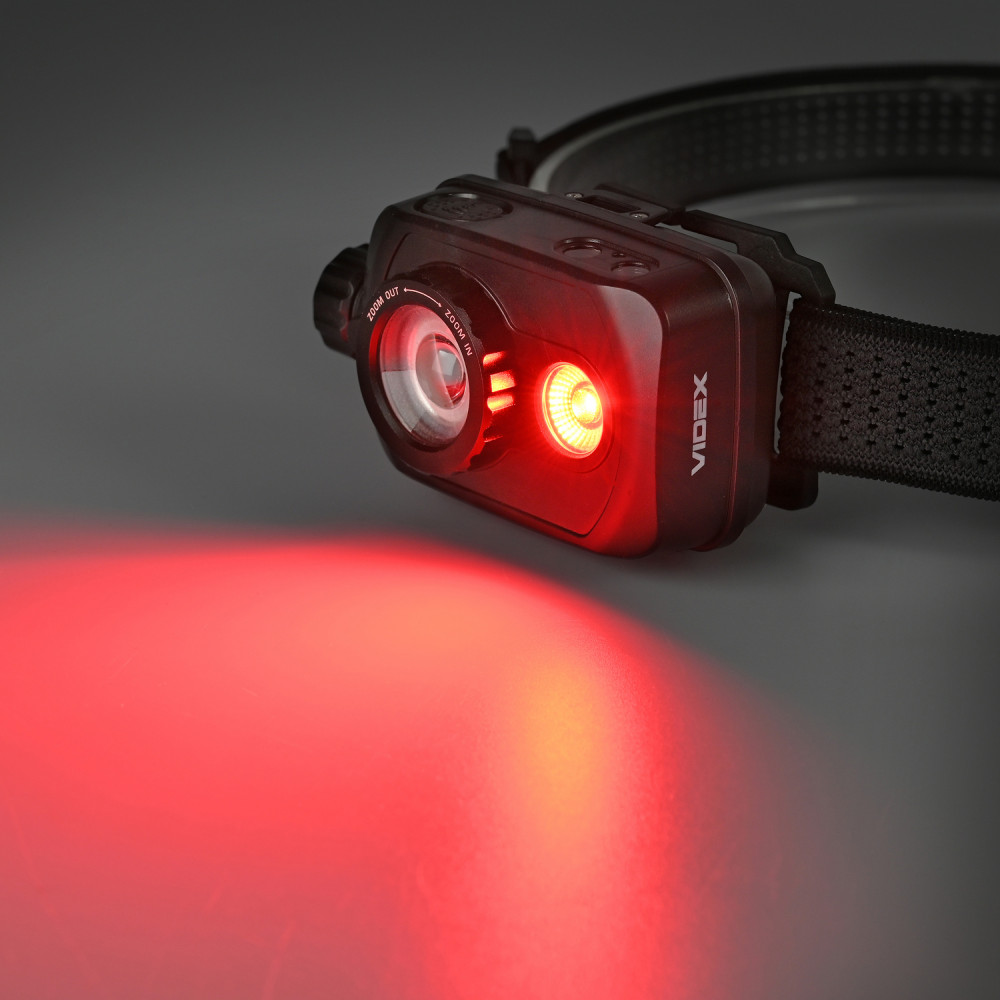

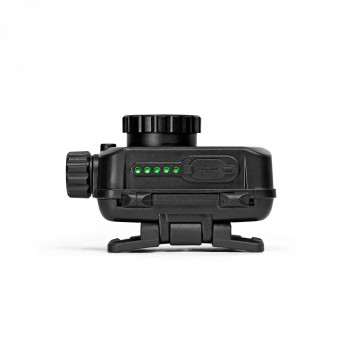

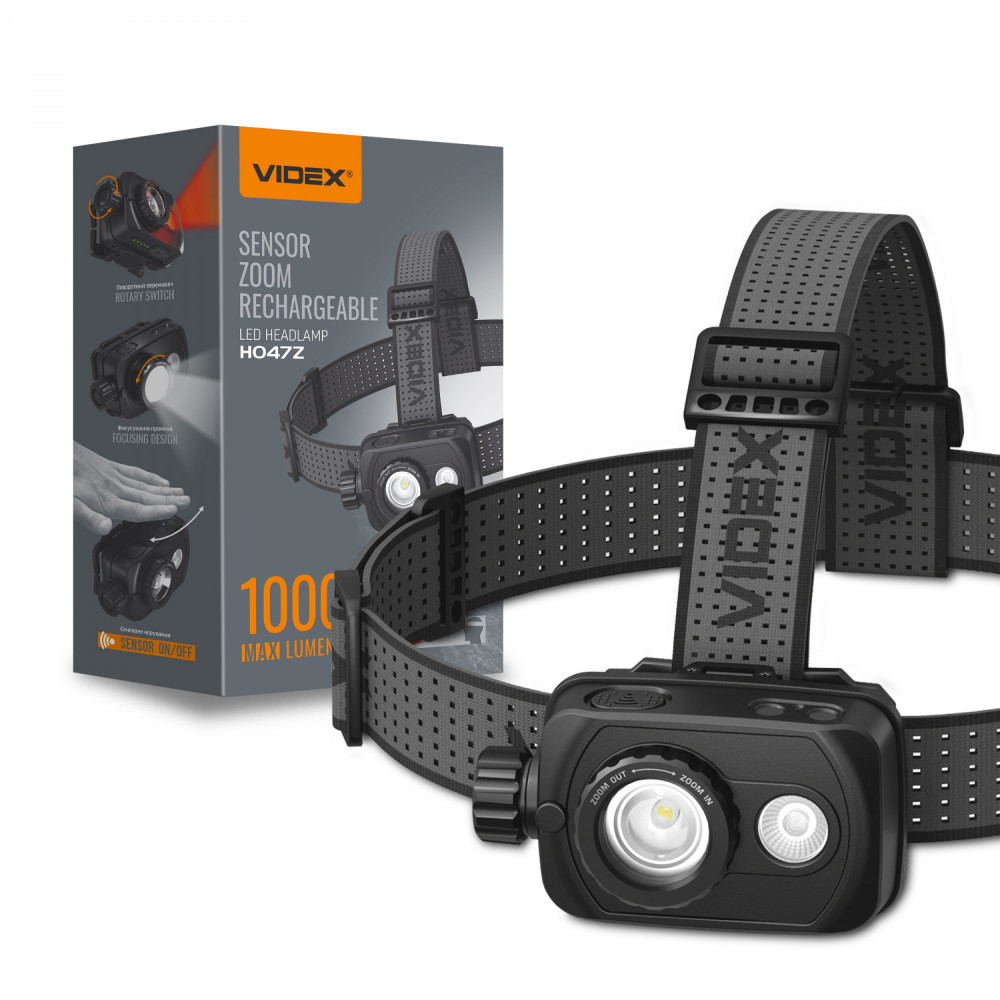

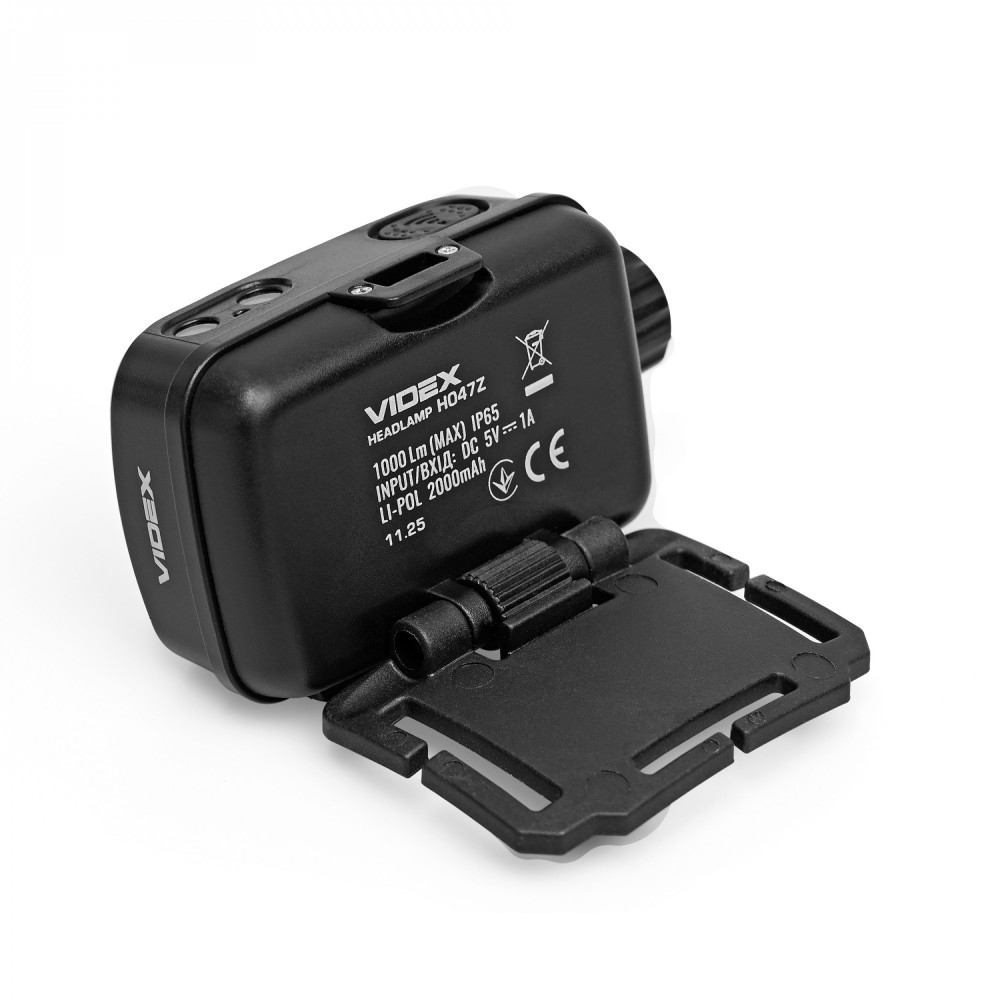

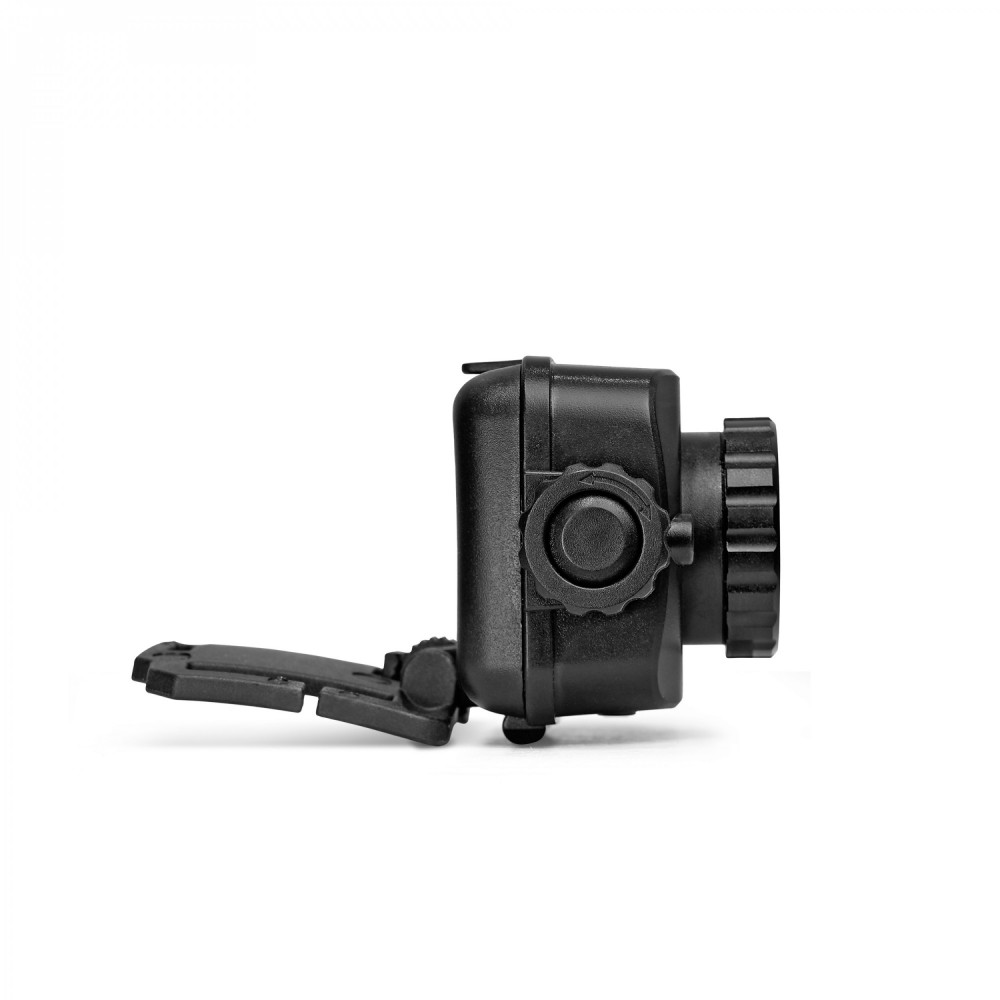

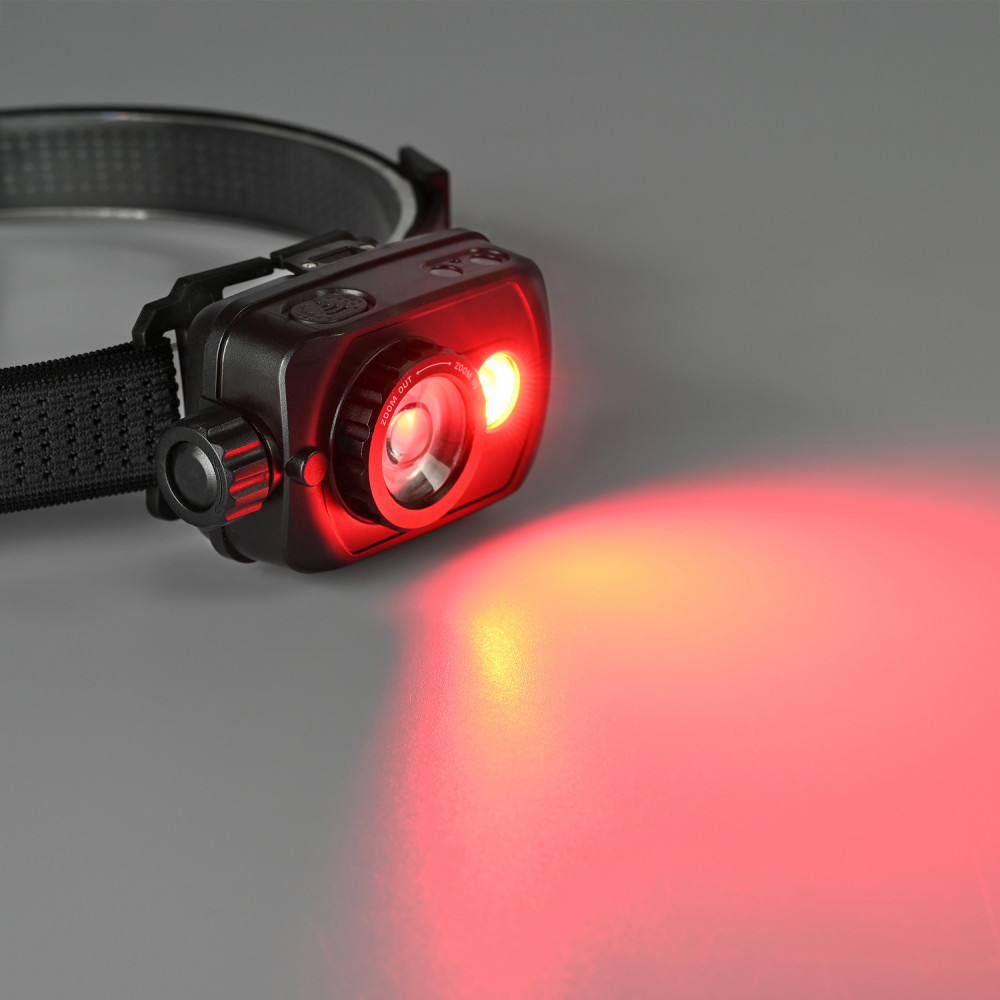

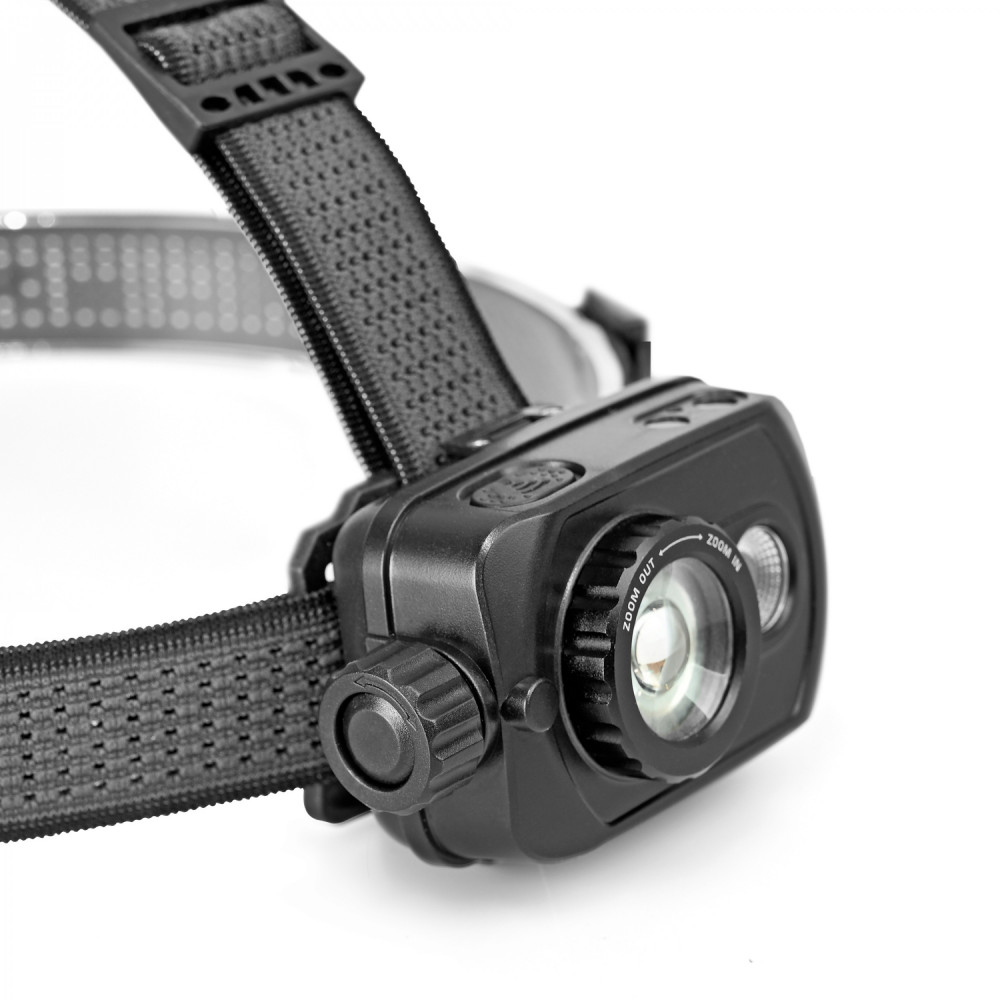

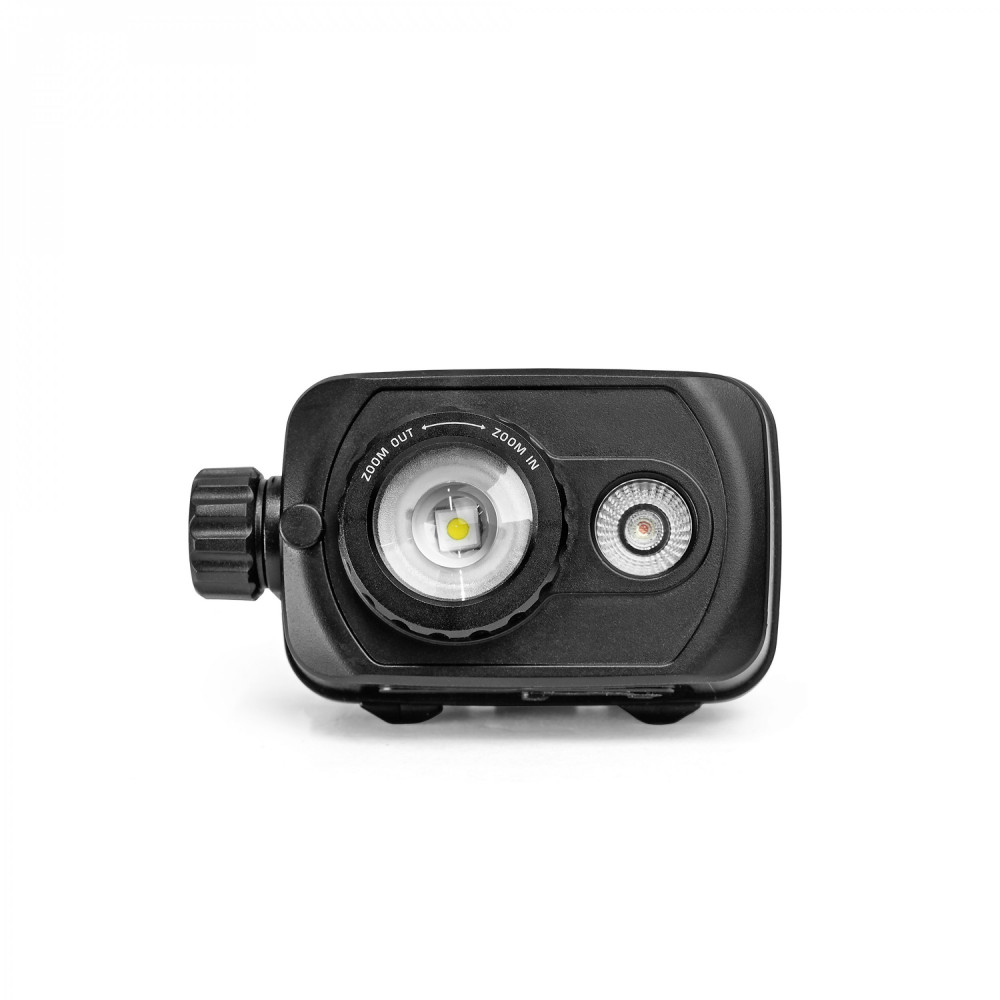

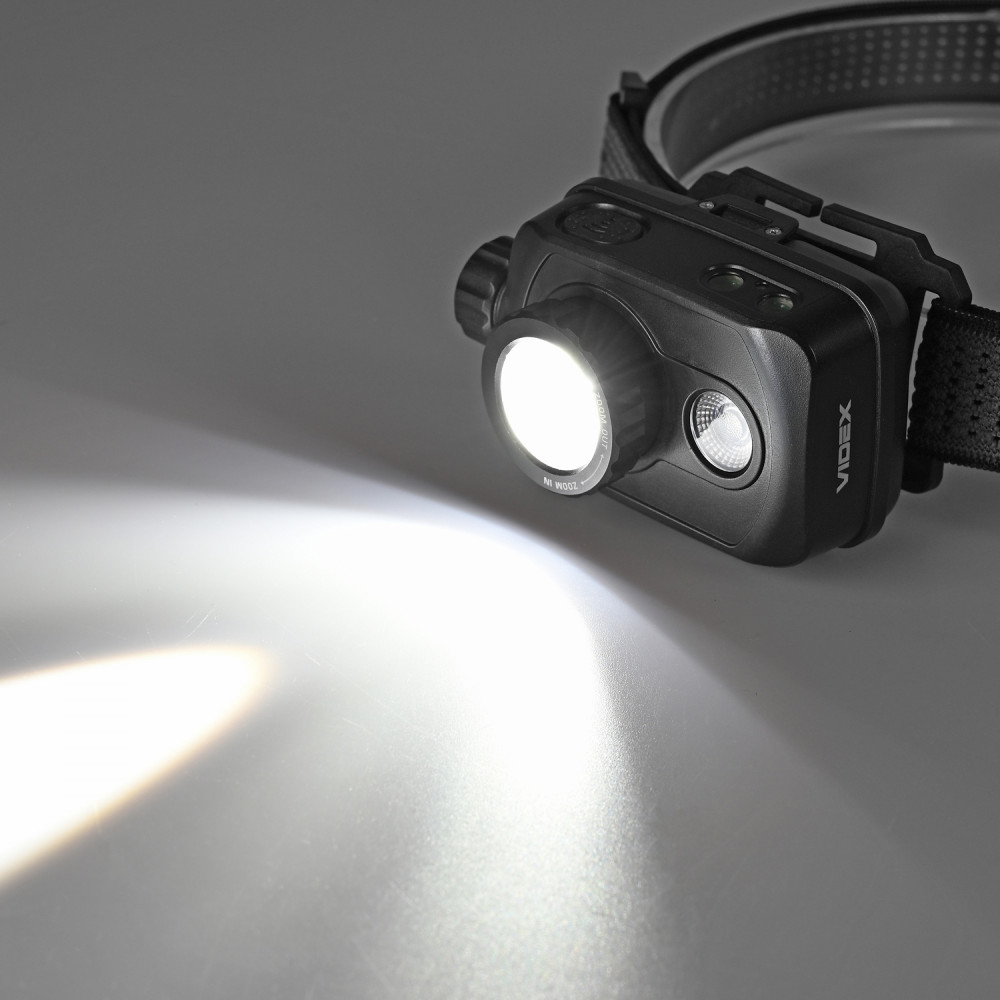

LED Headlamp VIDEX VLF-H047Z 1000Lm 5000K features both white and red light. Thanks to its 8 operating modes, beam focusing function, dust and water protection rating (IP65), 1m impact resistance, and adjustable tilt angle, it offers a wide range of applications. The headlamp can be controlled using the buttons on the корпус as well as by hand gestures thanks to the built-in motion sensor. The headlamp operates on a built-in 2000mAh Li-pol battery. The built-in battery may only be replaced by the user after the warranty period has expired. The replacement process is described in the manual. Please note that if the battery is replaced during the warranty period, the warranty will be void. HEADLAMP OPERATION The headlamp is controlled using a rotary switch, a side button, a sensor button, and the beam focusing mechanism. 1. Turning on and adjusting brightness is done by rotating the rotary switch. To turn on the light at the lowest brightness level, rotate the switch one step forward (away from you). To increase brightness, continue rotating the switch. 2. Switch between white and red light by pressing and holding the side button for 1 second while the headlamp is on. 3. To activate motion sensor mode, press the sensor button once while the headlamp is on (located on the top of the housing). The indicator next to the sensor button will light up to confirm activation. While the sensor is active, wave your hand once approximately 5 cm above the left side of the headlamp to temporarily turn it off. Wave again to turn it back on in the last selected mode. 4. To deactivate the motion sensor, press the sensor button once or rotate the rotary switch fully backward (toward you). 5. To adjust the beam angle, rotate the focusing mechanism left or right. 6. To turn off the headlamp, rotate the rotary switch fully backward (toward you). OPERATING MODES TURBO is the maximum white light brightness mode and provides 1000Lm. The beam distance is 215m. The runtime is 3h. The luminous intensity is 11660cd. HIGH (Maximum white brightness mode) provides 350Lm. The beam distance is 120m. The runtime is 4h 30min. The luminous intensity is 3500cd. MIDDLE (Medium white brightness mode) provides 120Lm. The beam distance is 65m. The runtime is 13h 30min. The luminous intensity is 1050cd. LOW (Minimum white brightness mode) provides 25Lm. The beam distance is 25m. The runtime is 58h. The luminous intensity is 200cd. RED HIGH (Maximum red brightness mode) provides 120Lm. The beam distance is 21m. The runtime is 4h 30min. The luminous intensity is 130cd. RED MIDDLE (Medium red brightness mode) provides 25Lm. The beam distance is 6m. The runtime is 30h. The luminous intensity is 15cd. RED LOW (Minimum red brightness mode) provides 5Lm. The beam distance is 4m. The runtime is 130h. The luminous intensity is 3cd. RED FLASH (Flashing red mode) provides 5Lm and operates in flashing mode. The beam distance is 4m. The runtime is 250h. The luminous intensity is 3cd. The headlamp automatically remembers the last selected color and restores it each time it is turned on until another color is selected. CHARGING The headlamp is charged using the included USB-C charging cable. To charge the device, turn it off and remove the protective silicone cover. Connect the USB-A end of the charging cable to a power adapter and the other end to the headlamp’s charging port. During charging, the indicator bars will blink to display the current battery level. Once fully charged, all bars will remain steadily lit. After charging, disconnect the cable and securely close the protective cover to prevent water and dust from entering the headlamp. WARNING! It is strictly prohibited to use the headlamp while charging. If the headlamp is turned off, a single press of the side button will activate the battery level indicator (located at the bottom of the housing near the charging port). The indication remains visible for 3 seconds unless turned off earlier by pressing the power button again. - Five green bars – 100–80%. - Four green bars – 79–60%. - Three green bars – 59–40%. - Two green bars – 39–20%. - One green bar – 19–0%. The warranty period is 2 years for the headlamp. The warranty does not cover accessories.
