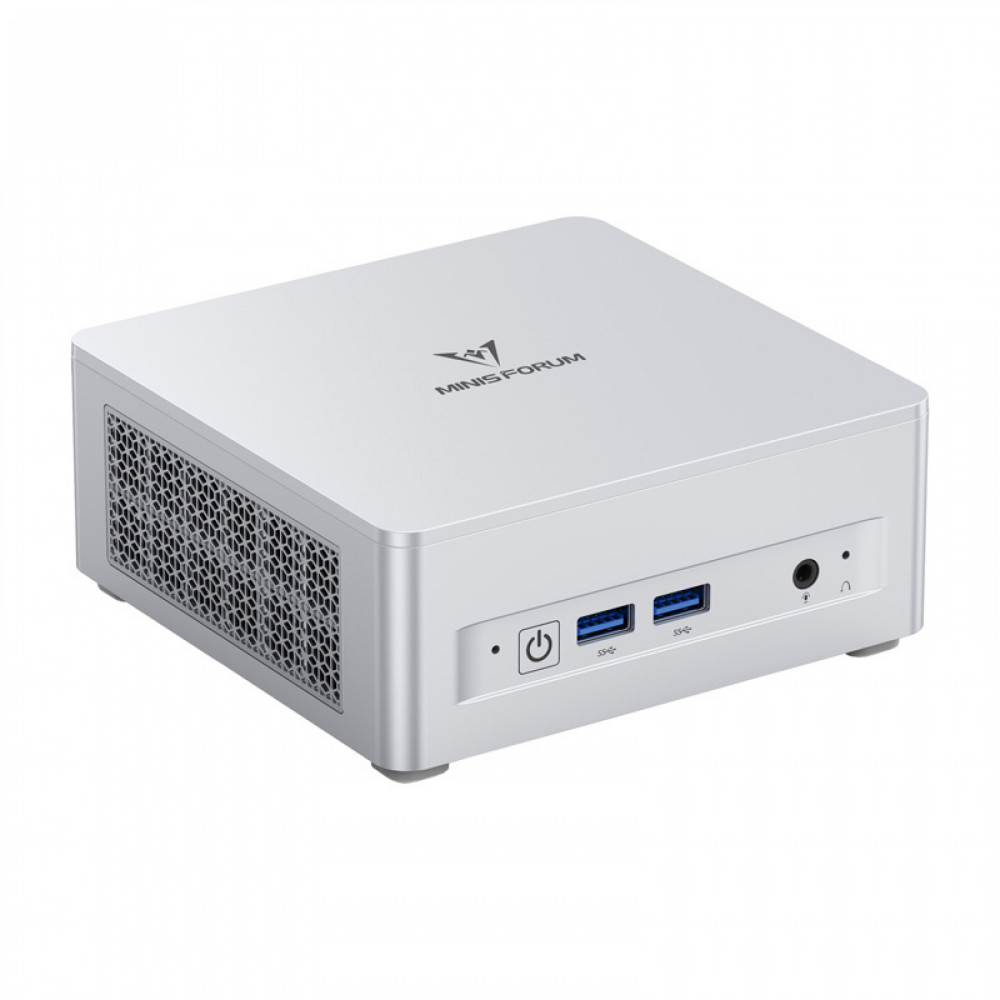

MINI PC Minis Forum UM870 Plus Ryzen 7 8745H 32GB RAM + 1TB

The Minisforum UM870 Plus is a mini PC with a small footprint, but surprisingly high computing power. It is equipped with an 8-core, 16-thread AMD Ryzen™ 7 8745H processor based on Zen 4 architecture, backed by 32GB of DDR5 RAM clocked at 5600 MHz and a fast 1TB PCIe 4.0 SSD. It offers multiple ports, including USB4, HDMI 2.1, DisplayPort 1.4 and OCulink, allowing the connection of up to 3 4K monitors or an external graphics card. Wi-Fi 6E support, a 2.5G Ethernet port, and expandable storage and RAM make the device great for both everyday work and performance-intensive applications.

Next-generation processor - AMD Ryzen™ 7 8745H

The MINI PC Minis Forum UM870 Plus is equipped with a Ryzen™ 7 8745H processor built with 4 nm lithography (TSMC FinFET). It offers 8 cores and 16 threads, which translates into high performance in both single-threaded and multi-threaded applications. The clock frequency reaches 4.9 GHz in turbo mode, so the device guarantees smooth operation even under heavy load. The Zen 4 architecture improves efficiency with better performance per watt. As a result, the computer is ready to handle creative, business and technical tasks.

Fast RAM and efficient data storage

The UM870 Plus comes standard with 32 GB of DDR5 RAM clocked at 5600 MHz. This amount and speed enables smooth switching between applications, smooth operation with large files and fast system response. If necessary, RAM can be expanded up to 96 GB. For data, there is a 1TB PCIe 4.0 SSD for lightning-fast file access and fast system startup. The computer supports 2 M.2 SSDs, so data space can be expanded to a total of 4TB.

Ready for graphics expansion with OCulink

Built-in AMD Radeon™ 780M graphics allow you to comfortably use everyday applications and multimedia. For more demanding users, there is OCulink, allowing the connection of an external graphics card. The graphics expansion allows you to significantly increase performance without having to replace the entire device.

Support for three monitors

HDMI 2.1, DisplayPort 1.4 and USB4 ports allow connecting up to 3 4K monitors simultaneously. Such a solution allows you to efficiently manage your workspace and conveniently use multiple applications at the same time. USB4 offers a bandwidth of up to 40 Gbps, making it easy to transfer large files, charge quickly and use modern accessories without delays.

Quiet and efficient cooling

The Minis Forum UM870 Plus PC uses a phase-change cooling system that transforms the state of matter to efficiently dissipate heat. Combined with a large, quiet fan and 3 heat pipes, the unit keeps operating temperatures low while generating noise below 35 dB - equivalent to the sound level in a library. A temperature drop of about 25% positively affects the stability of operation and longevity of components.

Stable wired and wireless connectivity

The 2.5G RJ45 Ethernet port with link aggregation provides up to 10 Gbps of bandwidth, which is important for transferring large files or working in networked environments. The UM870 Plus also supports Wi-Fi 6E and Bluetooth 5.3, which translates into fast, stable and energy-efficient wireless connections. The computer maintains smooth communication with other devices and the network regardless of conditions.

Immediate readiness to work

The device comes pre-installed with Windows 11 and support for Microsoft Copilot. This gives you access to up-to-date AI-powered tools that make it easier to organize your work, analyze content and perform daily tasks. The Minis Forum UM870 Plus will work well both as a home computer and as a work tool in businesses, edge computing or IoT environments.

Included:

• Mini PC
• Power supply
• Power cable
• Wall mounting bracket
• HDMI cable
• M.2 to OCulink adapter
• User manual
