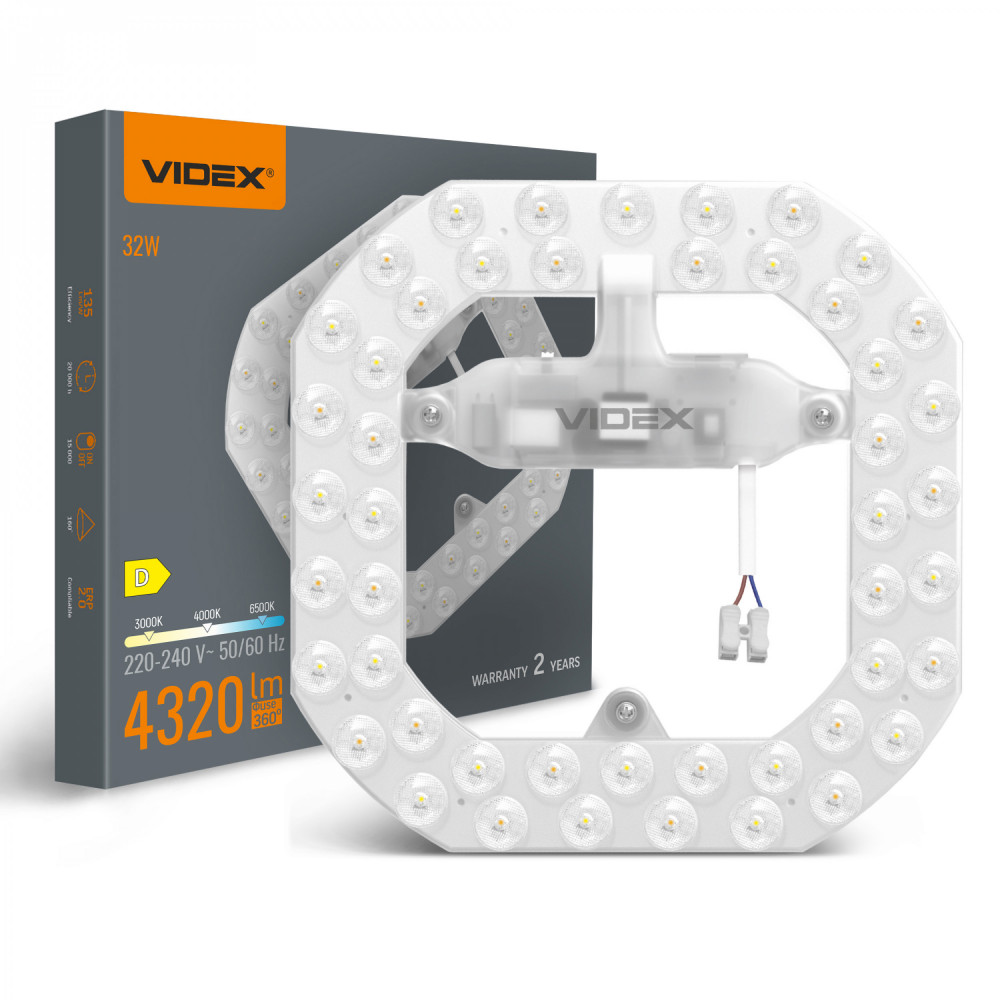

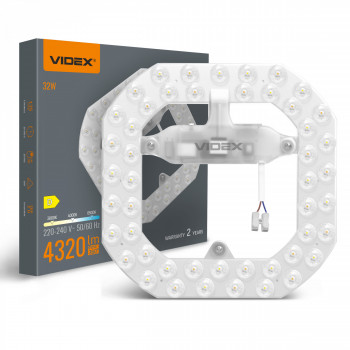

VIDEX VL-MLC-32C – LED Module 32W, 3CCT (3000K/4000K/6500K)
VIDEX VL-MLC-32C – LED Module 32W, 3CCT (3000K/4000K/6500K)
Product:
Price:
€ 9.90
Item is not available
-
Jauda (W):32
-
Gaismas plūsma (lm):4320
-
Krāsas spektrs (K):3000-4000-6500K
-
Stara leņķis (°):160
-
Pielietojums:Iekštelpas
-
Krāsa:Balta
-
Mitruma aizsardzības klase:IP20
-
Sensors:No
-
Garantija:2
-

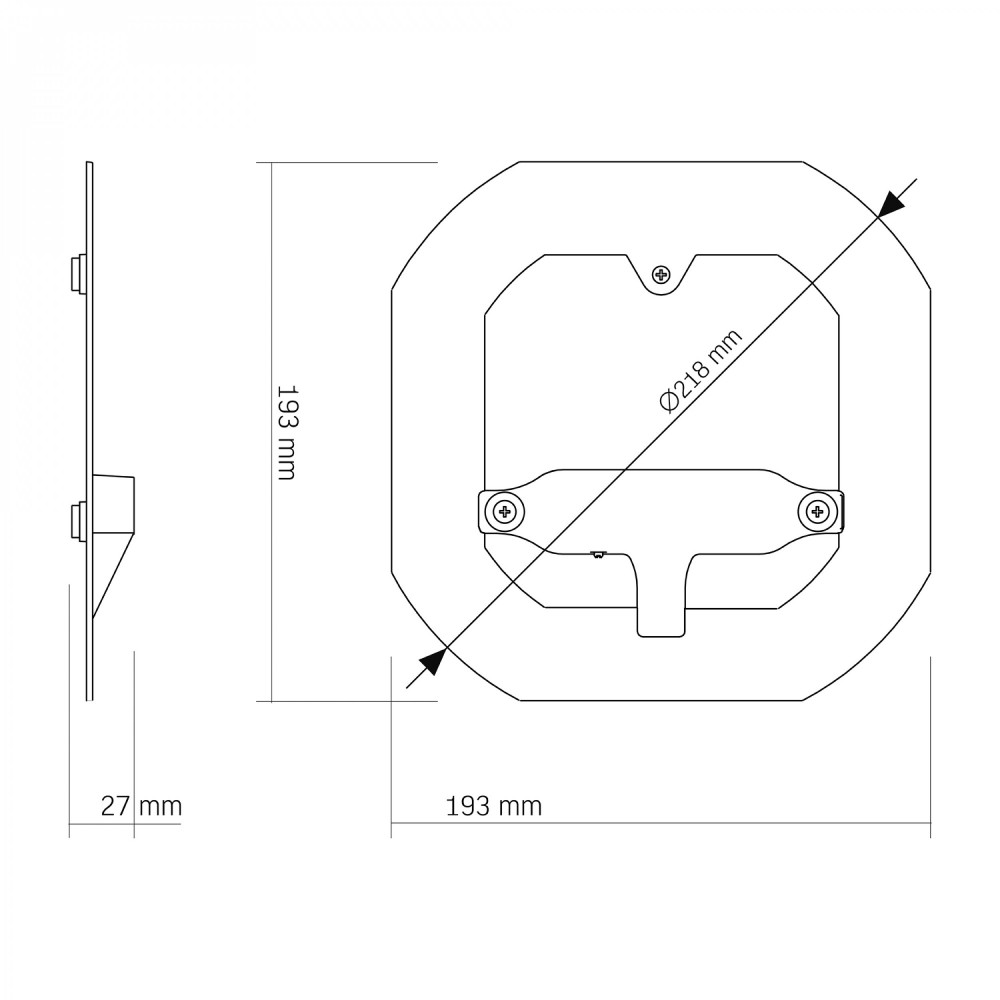

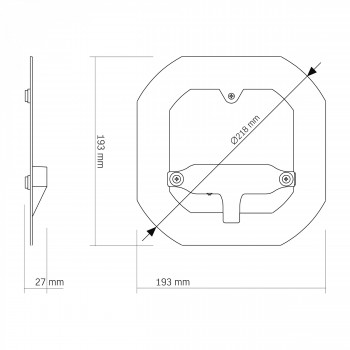

Produkta izmēri (GxPxA) mm:193x193x27
-
Materiāls:Alumīnijs, polikarbonāts
-
Svars (kg):0.115
-
Skaits iepakojumā (gab.):40
-
Nominālais spriegums (V), frekvence (Hz):AC 220-240V
-
Krāsu atveidošanas indekss (CRI):Ra > 80
-
Kalpošanas laiks (h):20 000h
-
Ieslēgšanas/izslēgšanas cikli:15 000
-
Darba temperatūras diapazons (°C):-20° +40°C
-
Aptumšojams (Dimmēšana):No

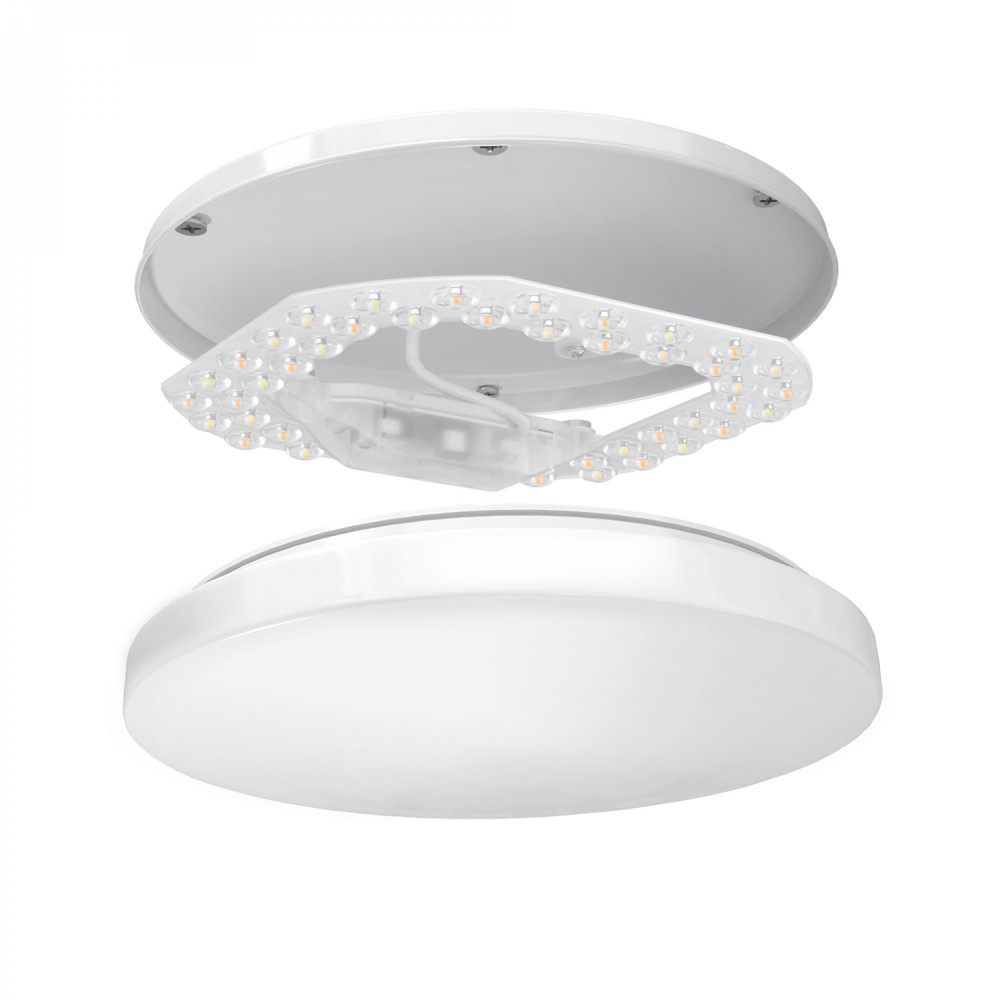

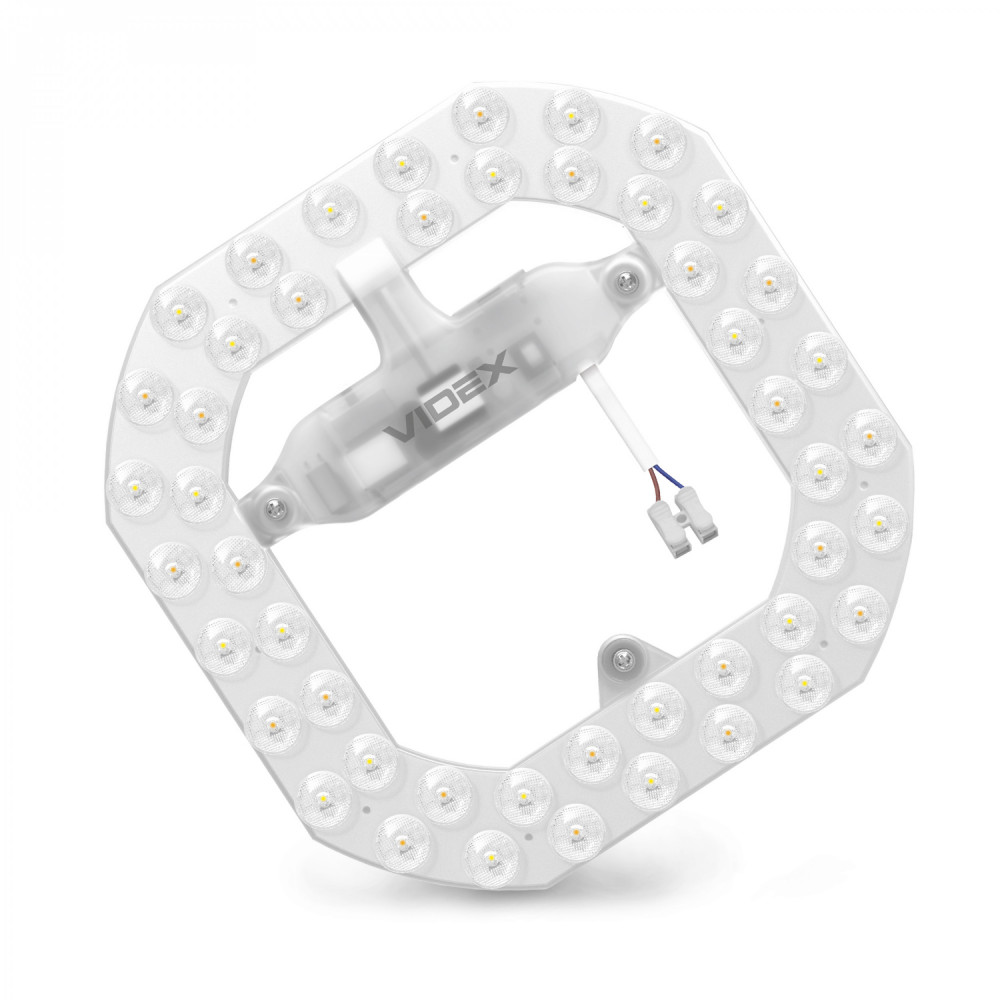

The LED module for VIDEX VL-MLC-32C luminaires is intended as a replacement light source for ceiling luminaires. In the event of a luminaire failure, it is enough to mount the module in the luminaire. The fastening is carried out using a magnet and there is no need to waste time re-mounting a new luminaire. ATTENTION! The mounted LED module is not intended for mounting outside the luminaire or with an open or damaged diffuser. The kit with the LED module includes a terminal block, user manual and individual packaging.
A feature of this model is the ability to adjust the color temperature of the light depending on your needs:
- 3000K (warm light): creates a cozy, soft atmosphere; ideal for living rooms, cafes, restaurants, hotel rooms or indoor recreation areas;
- 4000K (neutral white light): provides natural, balanced lighting; well suited for offices, corridors, schools, shops and other public spaces;
- 6500K (daylight): recommended for utility, technical or production premises, where clarity and contrast of vision are important.

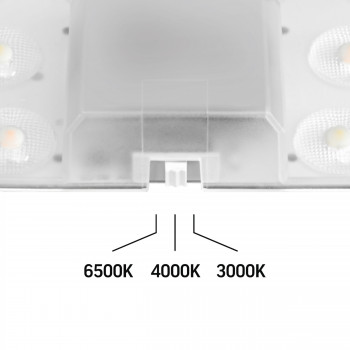

The color temperature of the light is set by moving the slider located on the back of the module housing.
TECHNICAL PARAMETERS:
- the light sources of the lamp are irreplaceable
- operating voltage in the range from AC 220 to 240V
- power - 32W
- luminous flux - 4320Lm
- high luminous efficiency - 135Lm/W
- energy consumption class - D (EU)
- warm-up time to 100% of the full luminous flux <1 sec.
- uniform bright lighting without flickering, instant on function and no ultraviolet radiation
- scattering angle – 160°
- light color temperature – 3000-4000-6500K
- the product is not compatible with dimmers
- number of on/off cycles – 15,000
- service life – 20,000 hours
- level of protection against dust and moisture IP20 (use in closed luminaires that provide protection against water droplets)
- class II of protection against electric shock
- the product does not contain harmful substances
INSTALLATION AND CONNECTION INSTRUCTIONS
During the entire process associated with replacing the light source, be sure to turn off the electricity. Read the instructions before installation. Installation must be carried out by a specialist with the appropriate qualifications. Please install and connect according to the diagram in the manual. Connections should be made using the terminal block supplied with the module or an external terminal block. Before first use, check the correct mechanical fastening and connection. The product may only be used in a network that meets the energy requirements and quality standards established by law.
PRECAUTIONS
1. Any maintenance work should be carried out with the power supply disconnected and the product brought to room temperature.
2. The product may only be powered by the rated voltage or voltage within the specified range.
3. Do not use the product with a damaged light diffuser, damaged wiring or connection points.
4. Do not cover the product with heat-insulating materials.
5. Do not look directly at the LED beam.
6. The product must not be used in adverse conditions, such as dust, water, moisture, vibration, explosive atmospheres, fumes or chemical vapors, etc.
7. The product is not repairable. Do not attempt to repair a broken product, as this will void the warranty.
8. Used or damaged products must be disposed of in accordance with applicable regulations.
Failure to follow these instructions may result in, for example, fire, burns, electric shock, personal injury and other material and immaterial damage. The manufacturer is not liable for any damage caused by failure to follow the above instructions.
